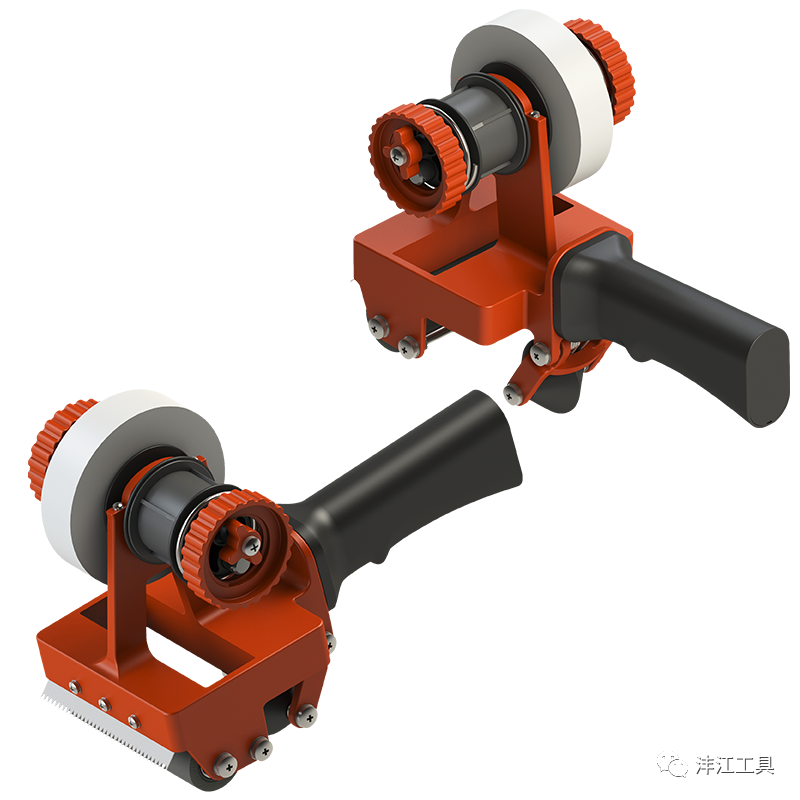

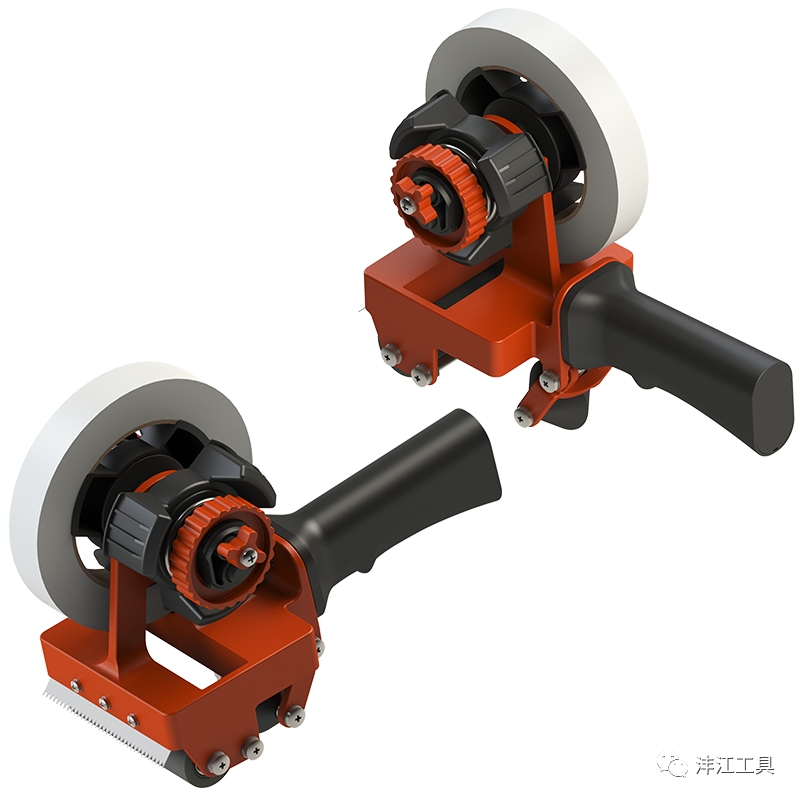

Double Masking Tape Dispenser

The masking tape dispenser has adjustable spacing, precise guidance, and suit both big and small rolls of tape. The double masking tape dispenser is suitable for all kinds of curtain walls, painting protect, sunlight room, glass canopy, waterproof，floor marking and other applications. The applying efficiency, straightness and compactness are better than manual work, avoiding wearing hands, It is a real   artifact!

Double masking tape dispenser suit big roll masking tape.

Double masking tape dispenser suit small roll masking tape.

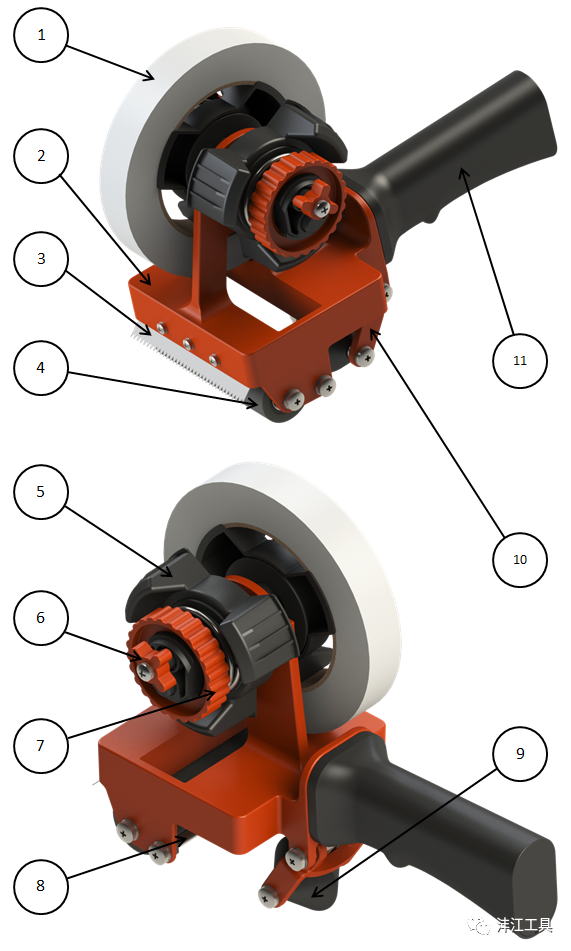

Double masking tape dispenser（ suit big roll masking tape ）

1. Housing: Using engineering plastics, unique design, strong and durable;

   Masking tape: it is suitable for big rolls tape, the inner diameter of the roll is about 76mm, the width can not be more than 30mm (1cm = 10mm),   and the maximum length is 50m (the thickness of the tape should be less than 20 mm);

2. Blade: Made of stainless steel, easy to cut off the tape;

3. Roller: two industrial grade bearings inside, coated with wear-resistant buffer rubber, smooth rolling, close tape on the working surface (Note: The coated rubber is similar to the tire parts of the car, which is a vulnerable part and needs to be replaced when it is worn to a certain extent)

4. Tape roller: using glass fiber reinforced engineering plastics, ingenious design for fast loading and unloading of masking tape;




5. Adjust knob: By rotating the part, the internal structure can be driven to realize the synchronous reduction and expansion of the distance between the two sides of the masking tape (the adjustment range of the tape distance is 8mm to 35mm), stepless adjustment, practical and fast;

6. Location shaft: Made of stainless steel, hold and locate the masking paper to provent drift;

7. Guide wheel:   two industrial grade bearings inside, shuttle shaped design, matching curtain wall national standards, suitable gap width range of 5mm to 30mm, accurate positioning and guidance(Note: The coated rubber is similar to the tire parts of the car, which is a vulnerable part and needs to be replaced when it is worn to a certain extent);

8. Guide wheel support:   two industrial grade bearings inside, connected with the housing through torsion spring;

9. Handle: Ergonomic design, comfortable grip and easy operation;

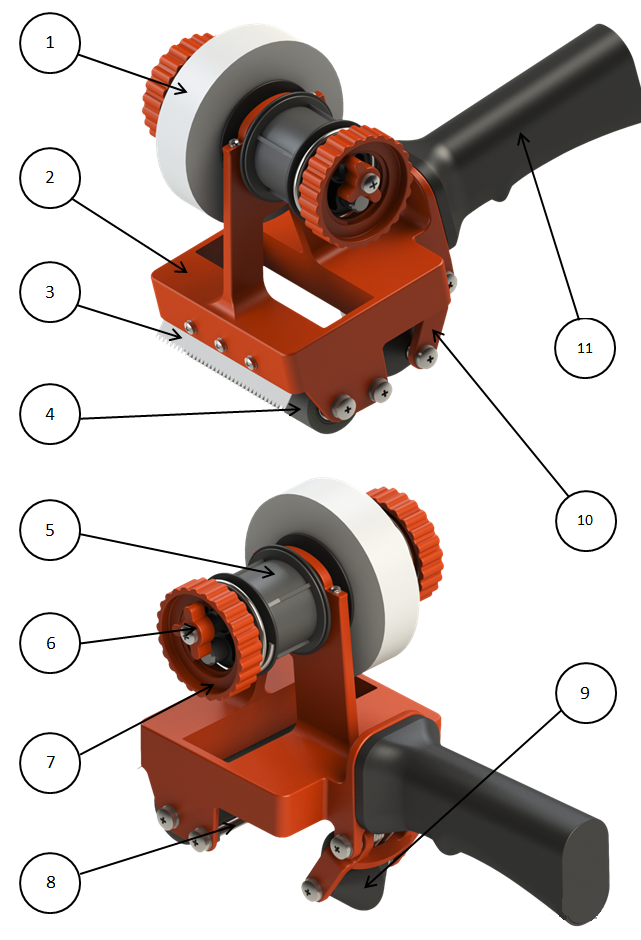

Double masking tape dispenser（ suit small roll masking tape ）

1. Masking tape: it is suitable for small rolls tape, the inner diameter of the roll is about 38mm, the width can not be more than 25mm (1cm = 10mm),   and the maximum length is 50m;


2. Housing: Using engineering plastics, unique design, strong and durable;

3. Blade: Made of stainless steel, easy to cut off the tape

4. Roller: two industrial grade bearings inside, coated with wear-resistant buffer rubber, smooth rolling, close tape on the working surface (Note: The coated rubber is similar to the tire parts of the car, which is a vulnerable part and needs to be replaced when it is worn to a certain extent)；

5. Tape roller: using glass fiber reinforced engineering plastics, ingenious design for fast loading and unloading of masking tape;

6. Adjust knob: By rotating the part, the internal structure can be driven to realize the synchronous reduction and expansion of the distance between the two sides of the masking tape (the adjustment range of the tape distance is 10mm to 35mm), stepless adjustment, practical and fast;

7. Spring cover: Ergonomic design, easy to operate, by adjusting the force applied on the spring to achieve the adjustment of tape rotation damping

8. Location shaft: Made of stainless steel, hold and locate the masking paper to provent drift;

9. Guide wheel:   two industrial grade bearings inside, shuttle shaped design, matching curtain wall national standards, suitable gap width range of 5mm to 30mm, accurate positioning and guidance(Note: The coated rubber is similar to the tire parts of the car, which is a vulnerable part and needs to be replaced when it is worn to a certain extent);

10. Guide wheel support:   two industrial grade bearings inside, connected with the housing through torsion spring;

11. Handle: Ergonomic design, comfortable grip and easy operation;

      It should be pointed out that the masking tape dispenser itself is positioned as an auxiliary applying tool, which is a pure manual tool. Although it can adapt to most places and application, it does not mean that it is suitable for all places. The large plane construction surface can maximize the speed advantage of the tool, and the places with many shapes need to be combined with manual operation. Normally, it is operated with one hand. It is necessary to use it in some places where applying operation is difficult, you can use another hand to assist applying. Moreover, there are many ways to use the tools. It can completely replace manual applying, or it can be combined with manual applying. Of course, it also can be used as only pulling out the masking tape. According to the different habits of everyone, it can be flexibly applied.
